Understanding the Working Principle and Applications of Industrial Wire Mesh Demister

In our latest industrial update, we delve into the working principle and diverse applications of the Wire Mesh Demister, a critical technology for gas-liquid separation across various industries. This device plays a vital role in enhancing operational efficiency and environmental compliance.

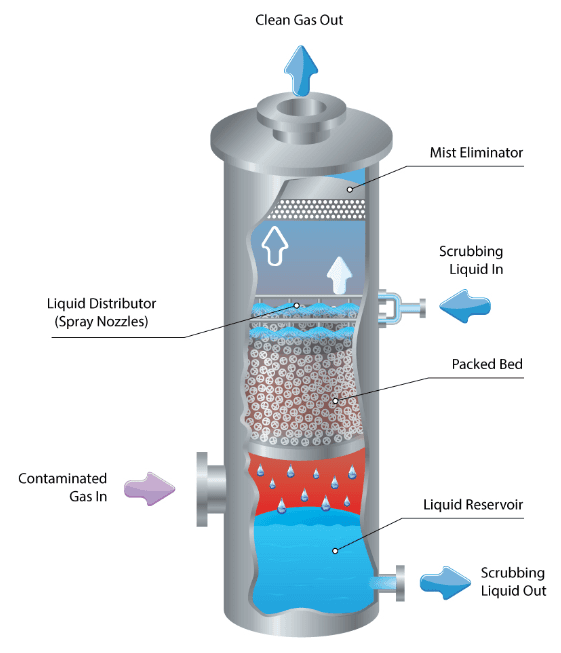

The Wire Mesh Demister operates through a series of stages to achieve effective gas-liquid separation:

1. Contaminated Gas In: The process begins as contaminated gas, containing liquid droplets, enters the system.

2. Liquid Distributor: The gas passes through a liquid distributor equipped with spray nozzles, which help evenly distribute the gas and liquid droplets.

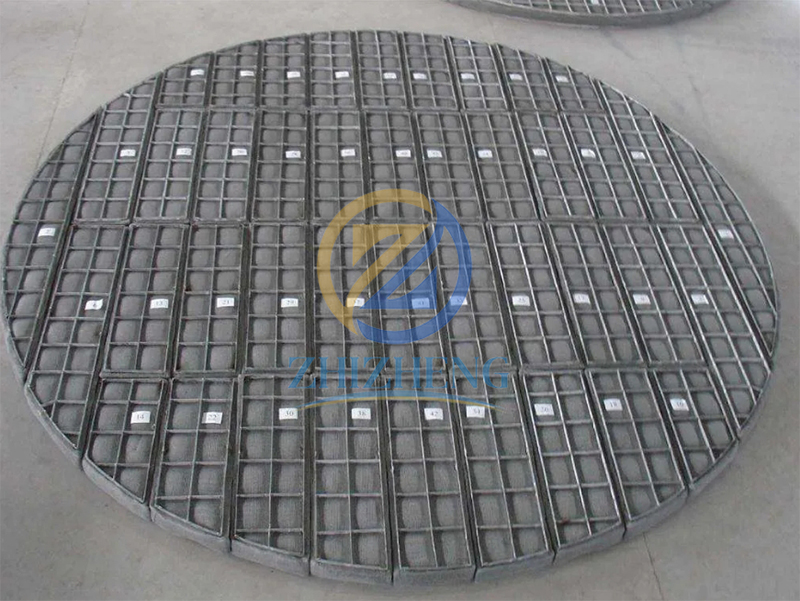

3. Wire Mesh Demister: The gas then flows through the Wire Mesh Demister. The mesh captures liquid droplets through mechanisms such as inertial impaction, interception, and diffusion. As the gas moves through the mesh, liquid droplets collide with the mesh fibers, coalesce, and are separated from the gas stream.

4. Clean Gas Out: After passing through the Wire Mesh Demister, the gas is free from liquid droplets and exits the system as clean gas.

5. Liquid Reservoir: The captured liquid droplets coalesce into larger droplets, which drain into a liquid reservoir due to gravity. This collected liquid can be removed or recycled as needed.





Applications:

The Wire Mesh Demister is widely used in various industries due to its efficiency and reliability:

1. Oil and Gas Industry: In refineries and natural gas processing plants, Wire Mesh Demisters are used to separate liquid hydrocarbons and water from gas streams, ensuring the purity of the gas and protecting downstream equipment.

2. Chemical Processing: Chemical plants utilize Wire Mesh Demisters to remove liquid droplets from gas streams in reactors, distillation columns, and scrubbers, enhancing product quality and process efficiency.

3. Power Generation: In power plants, especially those using steam turbines, Wire Mesh Demisters are employed to remove moisture from steam, preventing damage to turbines and improving overall efficiency.

4. Environmental Protection: Wire Mesh Demisters are used in air pollution control systems to capture mist and droplets from exhaust gases, ensuring compliance with environmental regulations.

5. Pharmaceutical Industry: In pharmaceutical manufacturing, these demisters are used to ensure the purity of gases used in various processes, maintaining stringent quality standards.

This versatile technology is essential for maintaining high operational standards and environmental compliance across multiple sectors.
